Advanced Engineered Insulation Systems

Integrity Insulation Systems

Meet our next-generation insulation systems, built from the ground up around more innovative design, tighter performance, and real-world durability. Our innovative concepts combine advanced materials with precision engineering to deliver superior thermal conservation, moisture resistance, and long-term energy savings across a wide range of applications, including non-contact solutions that are most desirable for protection against corrosion under insulation (CUI) and Insulation Driven Stress Corrosion Cracking (SCC). Designed for demanding high-temperature environments and cryogenic LNG applications, these systems maintain stable insulating value through extreme thermal cycling and vapor exposure. The result is a fully engineered insulation architecture optimized for low thermal conductivity, prevention against CUI & SCC, controlled heat flux, and reliable performance across the complete operating range.

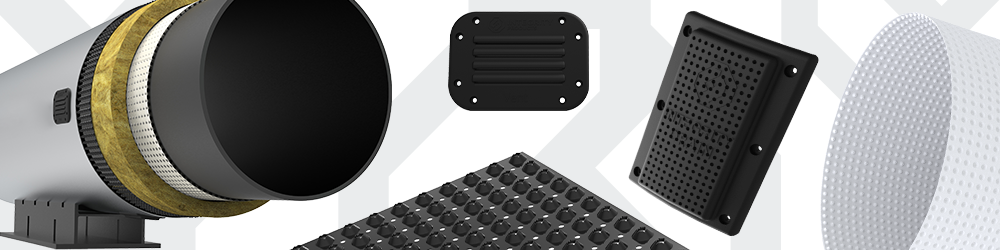

Multi-Layered Systems

MLS

The Multi-Layered System is engineered to address Corrosion Under Insulation (CUI) and Stress Corrosion Cracking (SCC), while also providing enhanced heat conservation. The Integrity Products Insulation Ventilation System (IVS) with PTFE Spacer Wrap consists of four key components: Integrity Perforated Dimple Wrap™, Integrity Vents™, Integrity Drains™, and PTFE Spacer Wrap™. The PTFE Spacer Wrap offers exceptional thermal performance, significantly exceeding that of insulation systems. It is engineered to create a 6mm air gap, serving as a barrier that prevents moisture and leachate from contacting insulated assets. The PVC, Vents, and Drains are specifically designed to facilitate moisture drying in saturated insulation systems, enhancing overall longevity and efficiency.

System Booklet: English

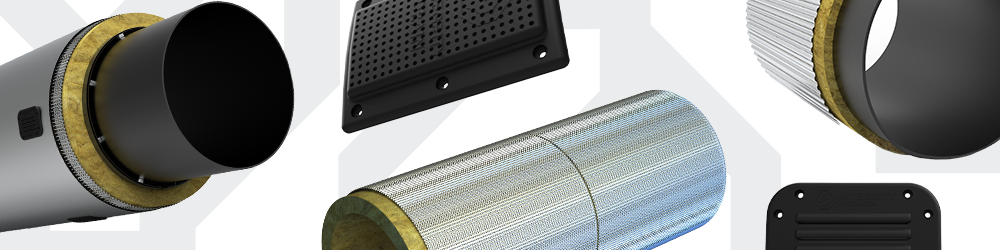

MLS HT

The Multi-Layered Insulation System is engineered to address Corrosion Under Insulation (CUI) and Stress Corrosion Cracking (SCC), while also providing enhanced heat conservation. Integrity Products’ multi-layered system comprises four key components: the Mica Spacer Ring™, Corrugated Perforated Aluminum Wrap™ (PCA), Vents™, and Drains™. Integrity Products Mica Spacer Ring is engineered to create a non-contact insulation system for high temperature applications ranging from 260°C to 500°C. The Mica Spacer Ring is used in conjunction with standard metal cladding to ensure complete separation of the insulation and process pipe, offering exceptional thermal performance and serves as a barrier to prevent moisture and leachates from contacting insulated assets during out of service events. The PCA, Vents and Drains are specifically designed to facilitate moisture drying in saturated insulation systems, enhancing overall longevity and efficiency.

System Booklet: English

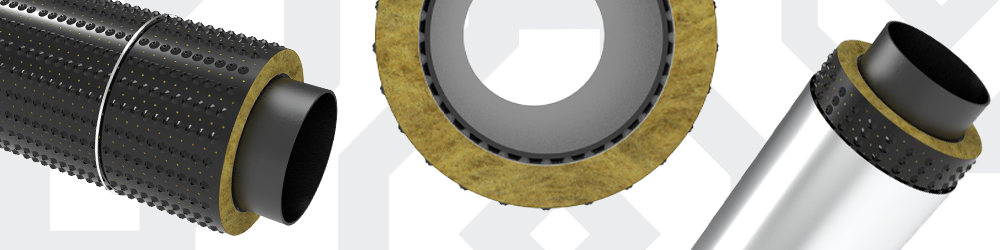

MLS Laminated Series

The Multi-Layered System is engineered to address Corrosion Under Insulation (CUI) and Stress Corrosion Cracking (SCC), while also providing enhanced heat conservation.

The Integrity Products Insulation Ventilation System (IVS) with PTFE Spacer Wrap consists of four key components: Integrity Perforated Dimple Wrap™, Integrity Vents™, Integrity Drains™, and PTFE Spacer Wrap™.

The PTFE Spacer Wrap offers exceptional thermal performance, significantly exceeding that of conventional insulation systems. It is engineered to create a 6 mm air gap, serving as a barrier that prevents moisture and leachate from contacting insulated assets. The PVC, Vents, and Drains are specifically designed to facilitate moisture drying in saturated insulation systems, enhancing overall longevity and efficiency.

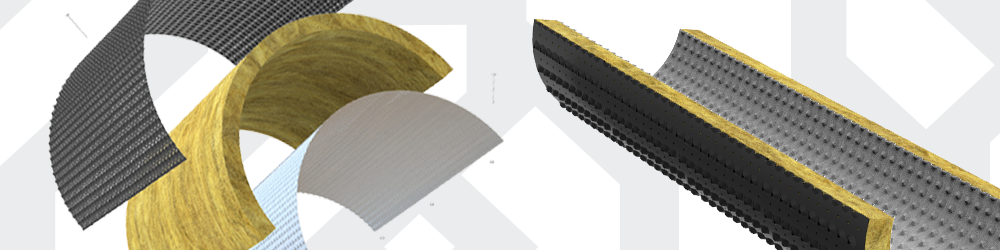

Building on this proven performance, Integrity Products’ Multi-Layered System Laminated Series fundamentally changes how the system is installed. Rather than requiring the sequential installation of the PTFE Spacer Wrap, mineral wool insulation, and Perforated Dimple Wrap as three separate layers in the field, the Laminated Series mechanically fastens these components into a factory-prepared, single-piece pipe cover half-shell. This integrated, bonded assembly significantly reduces installation time, labor effort, and material handling while ensuring a controlled, repeatable fit that resists slippage and maintains long-term system integrity. The system retains the benefits of a non-contact insulation design and active water egress through ventilation and drainage.

System Booklet: English

Integrity AeroWool Series

The Integrity IMP™ Hybrid Insulation System is an engineered, high-performance thermal solution for industrial piping, pipelines, and equipment operating at elevated temperatures, delivering exceptional energy efficiency and long-term reliability. This advanced triple-layer system integrates three complementary technologies:

  • ArmaGel® XGH Aerogel Insulation offering ultra-low thermal conductivity, hydrophobic performance, and a binder-free composition
  • A Proprietary Radiative Heat Shield air-permeable and designed to reduce radiative heat transfer
  • Integrity IMP™ Mineral Wool providing mechanical strength, structural stability, and high-temperature durability

Together, these technologies function as a single, optimized thermal system, maximizing heat-loss reduction while ensuring robust performance in demanding industrial environments.

System Booklet: English

Aerowool Series

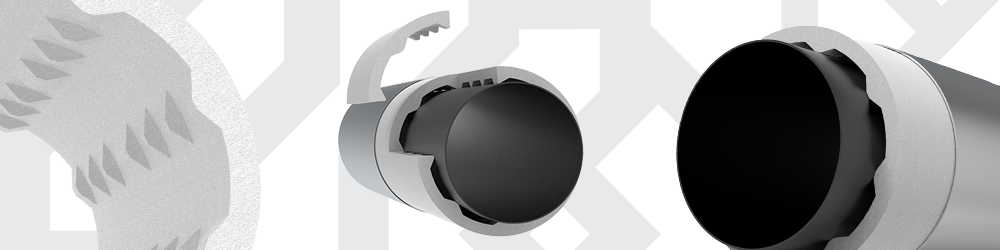

Integrity CF Series (coming soon)
